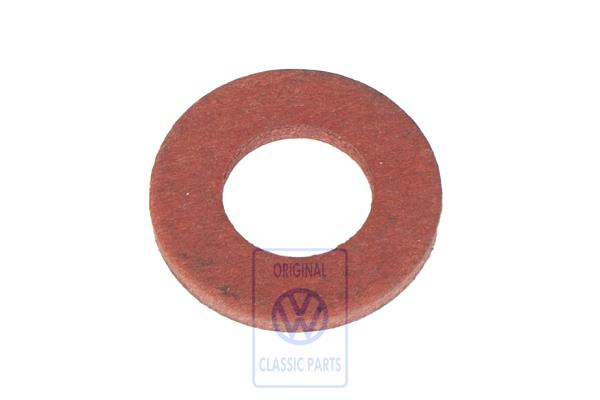

Product no.: 113 127 189
In stock
All prices include VAT, plus Delivery charge

Product description:


Model/catalogue category:

The original Volkswagen exploded schematics are now also available in our new Classic Parts online-shop. You will find them by selecting your model. You can do this by using the vehicle search to restrict the model / model generation / model year / specification. You can find Volkswagen models made after 1998 by using the VIN. If you open the product detail page of a spare part, the button “to the plate” will be displayed under “model” / catalog assignment”. By clicking that button, it will take you directly to the appropriate exploded schematic for your Volkswagen.

Model Model year starting from Model year to
Industrial Engine 1951 1991
K70 1971 1975
T2 1968 1979
VW 1200/1300 1947 1978
VW 1500/1600 1961 1973

Product details:

Product quality
Length 10 mm
Width 10 mm
Height 1 mm
Spare part number 113127189
Weight 0,0 KG

Delivery information:

Shipping Category Germany: Package

Shipping Category International: Package

The delivery time within Germany is approx. 2-5 working days, for internatinal delivery approx. 4-10 working days.
