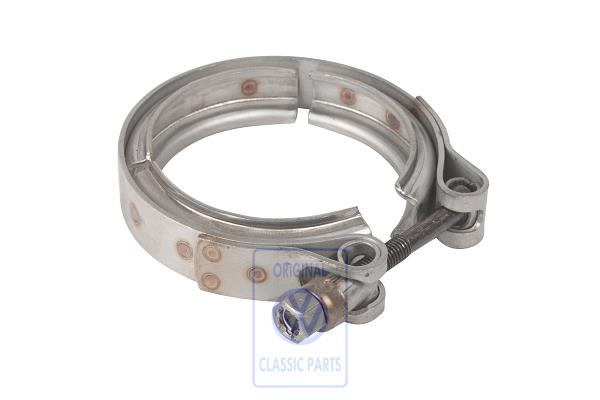

Clip

Clip

Clip
Clip
Product no.: 062 145 917
In stock
€11.00
All prices include VAT, plus Delivery charge

Product description:


Model/catalogue category:

The original Volkswagen exploded schematics are now also available in our new Classic Parts online-shop. You will find them by selecting your model. You can do this by using the vehicle search to restrict the model / model generation / model year / specification. You can find Volkswagen models made after 1998 by using the VIN. If you open the product detail page of a spare part, the button “to the plate” will be displayed under “model” / catalog assignment”. By clicking that button, it will take you directly to the appropriate exploded schematic for your Volkswagen.

Model Model year starting from Model year to
LT Mk2 2004 2007

Product details:

Product quality
Length 152 mm
Width 75 mm
Height 24 mm
Spare part number 062145917
Weight 0,313 KG

Delivery information:

Shipping Category Germany: Package

Shipping Category International: Package

The delivery time within Germany is approx. 2-5 working days, for internatinal delivery approx. 4-10 working days.
