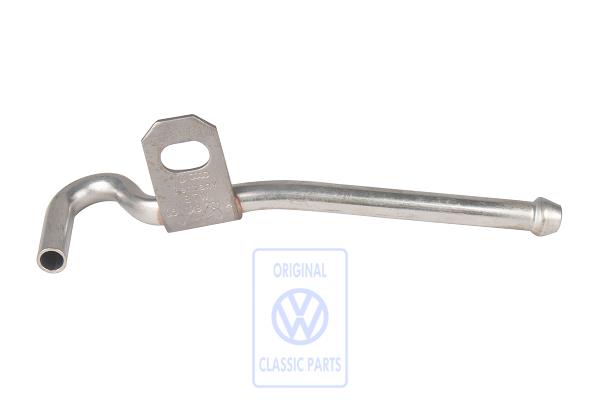

Product no.: 051 129 701 A
In stock
All prices include VAT, plus Delivery charge

Product description:


Model/catalogue category:

The original Volkswagen exploded schematics are now also available in our new Classic Parts online-shop. You will find them by selecting your model. You can do this by using the vehicle search to restrict the model / model generation / model year / specification. You can find Volkswagen models made after 1998 by using the VIN. If you open the product detail page of a spare part, the button “to the plate” will be displayed under “model” / catalog assignment”. By clicking that button, it will take you directly to the appropriate exploded schematic for your Volkswagen.

Model Model year starting from Model year to
Golf Country 1986 1991
Golf Mk2 1986 1992
Golf Mk2 syncro 1986 1991
Jetta Mk2 1986 1992
Jetta Mk2 syncro 1986 1991
Passat B3 1988 1991
Rallye Golf 1986 1991

Product details:

Product quality
Length 175 mm
Width 40 mm
Height 34 mm
Spare part number 051129701A
Weight 0,046 KG

Delivery information:

Shipping Category Germany: Package

Shipping Category International: Package

The delivery time within Germany is approx. 2-5 working days, for internatinal delivery approx. 4-10 working days.
