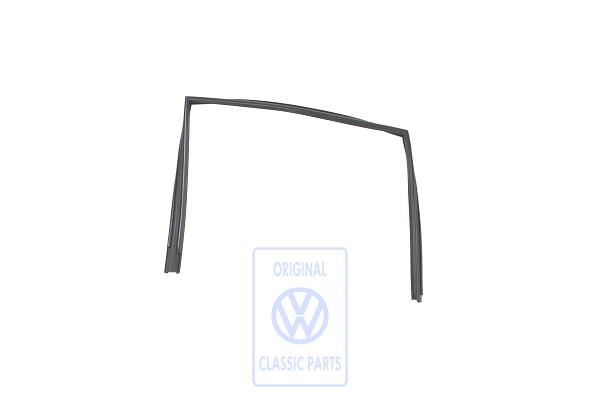

guide
Product no.:
331 839 439 E 01C
In stock
€33.99
All prices include VAT, plus
Delivery charge
Go to
Model/catalogue categories
Go to
Product details
Go to
Delivery information
Product description:
guide
Model/catalogue category:
The original Volkswagen exploded schematics are now also available in our new Classic Parts online-shop. You will find them by selecting your model. You can do this by using the vehicle search to restrict the model / model generation / model year / specification. You can find Volkswagen models made after 1998 by using the VIN. If you open the product detail page of a spare part, the button “to the plate” will be displayed under “model” / catalog assignment”. By clicking that button, it will take you directly to the appropriate exploded schematic for your Volkswagen.
| Model | Model year starting from | Model year to |
|---|---|---|
| Passat B2 | 1985 | 1988 |
| Passat B2 syncro | 1985 | 1988 |
| Santana | 1985 | 1985 |
Product details:
| Product quality |
|
| Length | 720 mm |
| Width | 510 mm |
| Height | 37 mm |
| Spare part number | 331839439E 01C |
| Weight | 0.391 KG |
Delivery information:
Shipping Category: Package
The delivery time is approx 4-10 working days.
