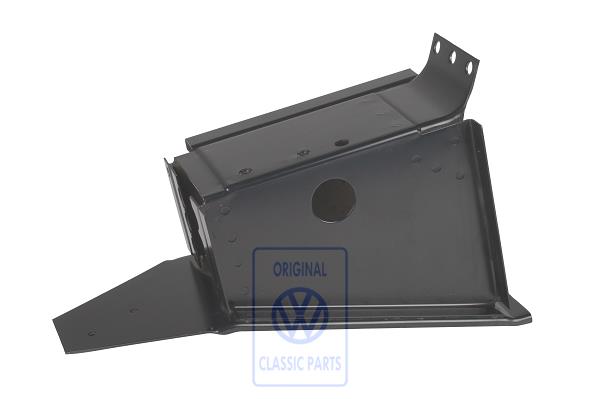

AUSLEGER

AUSLEGER

AUSLEGER
AUSLEGER
Product no.: 2D3 804 555
In stock
€69.48
All prices include VAT, plus Delivery charge

Product description:

AUSLEGER

Model/catalogue category:

The original Volkswagen exploded schematics are now also available in our new Classic Parts online-shop. You will find them by selecting your model. You can do this by using the vehicle search to restrict the model / model generation / model year / specification. You can find Volkswagen models made after 1998 by using the VIN. If you open the product detail page of a spare part, the button “to the plate” will be displayed under “model” / catalog assignment”. By clicking that button, it will take you directly to the appropriate exploded schematic for your Volkswagen.

Model Model year starting from Model year to
LT Mk2 1997 2007

Product details:

Product quality
Length 415 mm
Width 240 mm
Height 140 mm
Spare part number 2D3804555
Weight 2.28 KG

Delivery information:

Shipping Category: Package

The delivery time is approx 4-10 working days.
