Engine code: ABD, AAM, ABS, ABU, 2E, 1Y, 1Z, AEP, ADZ, AEX, AEE, AFT, AGG, AFN, AHU, ALE, AKS, AKR, APQ, ANP, ANN
The original Volkswagen exploded schematics are now also available in our new Classic Parts online-shop. You will find them by selecting your model. You can do this by using the vehicle search to restrict the model / model generation / model year / specification. You can find Volkswagen models made after 1998 by using the VIN. If you open the product detail page of a spare part, the button “to the plate” will be displayed under “model” / catalog assignment”. By clicking that button, it will take you directly to the appropriate exploded schematic for your Volkswagen.
|Model||Model year starting from||Model year to|
|Golf Mk3 Cabriolet||1994||1998|
|Golf Mk3 Variant||1992||1999|
|Golf Mk3 syncro||1993||1998|

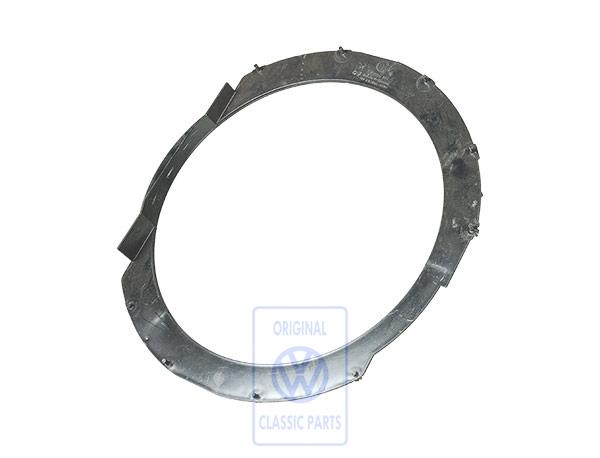

|Spare part number||1H0121210A|
Shipping Category: Package
The delivery time is approx 4-10 working days.
