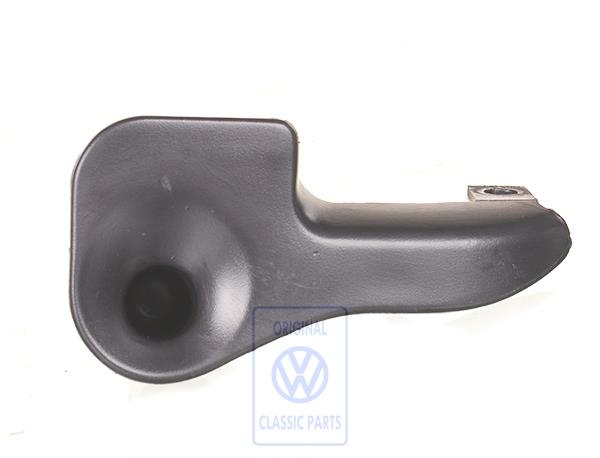

Colour: satin black
The original Volkswagen exploded schematics are now also available in our new Classic Parts online-shop. You will find them by selecting your model. You can do this by using the vehicle search to restrict the model / model generation / model year / specification. You can find Volkswagen models made after 1998 by using the VIN. If you open the product detail page of a spare part, the button “to the plate” will be displayed under “model” / catalog assignment”. By clicking that button, it will take you directly to the appropriate exploded schematic for your Volkswagen.
|Model||Model year starting from||Model year to|
|Golf Mk3 Cabriolet||1994||1998|
|Golf Mk4 Cabriolet||1999||2002|
|Spare part number||1E0871347 B41|
Shipping Category: Package
The delivery time is approx 4-10 working days.
