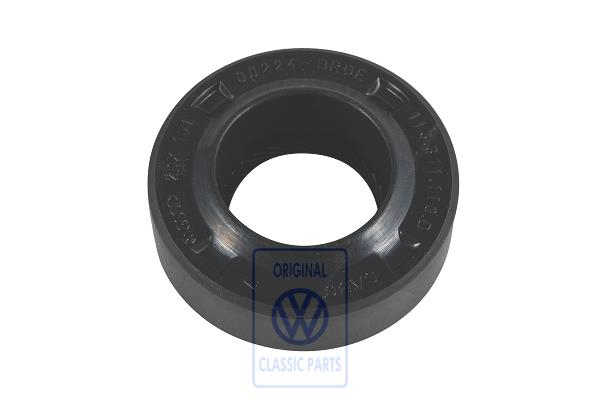

oil seal

oil seal

oil seal
oil seal
Product no.: 113 311 113 A
In stock
€9.99
prices excluding VAT, shipping costs and import fees
Go to Model Classification / Picture Boards
Go to Product details
Go to Delivery information

Product description:

VW 1200 47-86 / GHIA 56-74 / ILT 69-82 / T1M 94-99T2 68-92 / T3 61-73oil seal

Model Classification / Picture Boards:

Please click the arrow right to the model year for more information or to view the picture boards.
Model Model year starting from Model year up to
Beetle (Mexico) 1964
2004
Use Comment Model specification
gears and shafts
Go to diagram
T2 1968
1979
Use Comment Model specification
gears and shafts
for manual gearbox
F >> 215 2300 000
F 216 0000 001>>
Go to diagram
CA-CN
CP-CX
T3 1980
1985
Use Comment Model specification
gears and shafts
for 4-speed manual gearbox
G >> 31 07 2
G 01 08 2>> 31 12 2
Go to diagram
DH,DS,DZ,2D
S799
gears and shafts
for 5 speed manual transmiss.
G 01 08 2>>
Go to diagram
DV,8H,ABL,
7D,8F,
DW,8E,ABN,
8D,3P,ABM,
DX,8L,ABR,
9D,8P,ABP,
3H,AAS,AAP,
AAR
gears and shafts
for 4-speed manual gearbox
G 24 06 2>>
Go to diagram
DU,5D,ABD,
DT,4D,ABB,
DY,6D,ACP,
ACR,ABF,
4W,ABH
T3 1986
1987
Use Comment Model specification
gears and shafts
for 4-speed manual gearbox
Go to diagram
ABB,ABD,ABE,
ABF,ABH,ACW,
ALD,ABS
gears and shafts
for 5 speed manual transmiss.
Go to diagram
ABL,ABN,ABM,
ABR,3H,AAP,
AAS,AAR,AGT
T3 1988
1992
Use Comment Model specification
gears and shafts
for 4-speed manual gearbox
Go to diagram
ABB,ABD,ABE,
ABH,ACW,ABS,
ALD,APF
gears and shafts
for 5 speed manual transmiss.
Go to diagram
AAP,AAR,AAS,
ABK,ABL,ABM,
ABN,ABP,ABR,
AGT,ASL,AST,
3H,ASS,ASR,
ASM,ASP,ASN
T3 (South Africa) 1988
1992
Use Comment Model specification
gears and shafts
for 4-speed manual gearbox
Go to diagram
ABB,ABD,ABE,
ABH,ACW,ABS,
ALD,APF
gears and shafts
for 5 speed manual transmiss.
Go to diagram
AAP,AAR,AAS,
ABK,ABL,ABM,
ABN,ABP,ABR,
AGT,ASL,AST,
3H,ASS,ASR,
ASM,ASP,ASN
T3 syncro 1985
1992
Use Comment Model specification
gears and shafts
Input shaft
for manual gearbox
Go to diagram
6ZA,
6P,AAK,AKK,
6PA,AAN,ALK,
AHA,ALE,
AGZ,AHF,AND,
AKE,AKG
AVV,AVH,AVF,
AVJ,
AVM,AVN,AVL,
AVR,AVS,AVK,
AVU
Tipo 2 (Mexico) 1972
2001
Use Comment Model specification
gears and shafts
Go to diagram
Type 2 (South Africa) 1995
2003
Use Comment Model specification
gears and shafts
Go to diagram
AAJ,CYV,DKP
gears and shafts
for 5 speed manual transmiss.
Go to diagram
AFJ
VW 1200 1978
1985
Use Comment Model specification
gears and shafts
Go to diagram
VW 1200/1300 1947
1978
Use Comment Model specification
gears and shafts
(standard gears)
F >> 397 022
F >> 115 247 528
Go to diagram
113,114,
151,152
111,112
gears and shafts
(synchromesh gears)
F 397 023>> 3 192 506
Go to diagram
113,114,141-
144,151,152
gears and shafts
(fully synchronous gears)
F 3 192 507>> 150 3100 000
F 3 192 507>> 144 2999 000
F 3 192 507>>
F 115 247 529>>
Go to diagram
151,152
141-144
113,114
111,112
VW 1302/1303 1971
1980
Use Comment Model specification
gears and shafts
Go to diagram
manual
gearbox
VW 1500/1600 1961
1973
Use Comment Model specification
gears and shafts
Go to diagram
VW 181 1969
1982
Use Comment Model specification
gears and shafts
Go to diagram

Product details:
Product quality
Length 41 mm
Width 41 mm
Height 16 mm
Spare part number 113311113A
Weight 0.016 KG

Delivery information:

Shipping category: Package

All shipments via package and mail delivery with tracking.

The delivery time is approx 4-10 working days.
