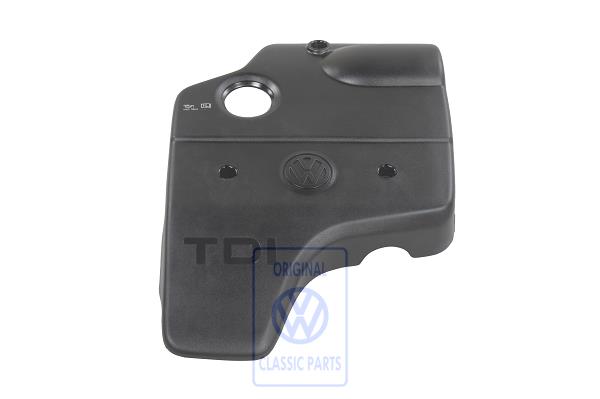

cover

cover

Product no.: 028 103 935 C
In stock
€161.99
All prices include VAT, plus Delivery charge

Product description:

cover

Model/catalogue category:

The original Volkswagen exploded schematics are now also available in our new Classic Parts online-shop. You will find them by selecting your model. You can do this by using the vehicle search to restrict the model / model generation / model year / specification. You can find Volkswagen models made after 1998 by using the VIN. If you open the product detail page of a spare part, the button “to the plate” will be displayed under “model” / catalog assignment”. By clicking that button, it will take you directly to the appropriate exploded schematic for your Volkswagen.

Model Model year starting from Model year to
Passat B4 1994 1997

Product details:

Product quality
Length 610 mm
Width 470 mm
Height 120 mm
Spare part number 028103935C
Weight 1.22 KG

Delivery information:

Shipping Category: Package

The delivery time is approx 4-10 working days.
