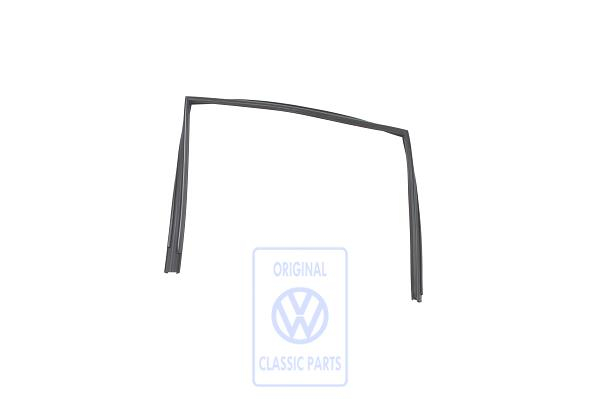

Product no.: 331 839 439 E 01C
In stock
All prices include VAT, plus Delivery charge

Product description:


Model/catalogue category:

The original Volkswagen exploded schematics are now also available in our new Classic Parts online-shop. You will find them by selecting your model. You can do this by using the vehicle search to restrict the model / model generation / model year / specification. You can find Volkswagen models made after 1998 by using the VIN. If you open the product detail page of a spare part, the button “to the plate” will be displayed under “model” / catalog assignment”. By clicking that button, it will take you directly to the appropriate exploded schematic for your Volkswagen.

Model Model year starting from Model year to
Passat B2 1985 1988
Passat B2 syncro 1985 1988
Santana 1985 1985

Product details:

Product quality
Length 720 mm
Width 510 mm
Height 37 mm
Spare part number 331839439E 01C
Weight 0.391 KG

Delivery information:

Shipping Category: Package

The delivery time is approx 4-10 working days.
