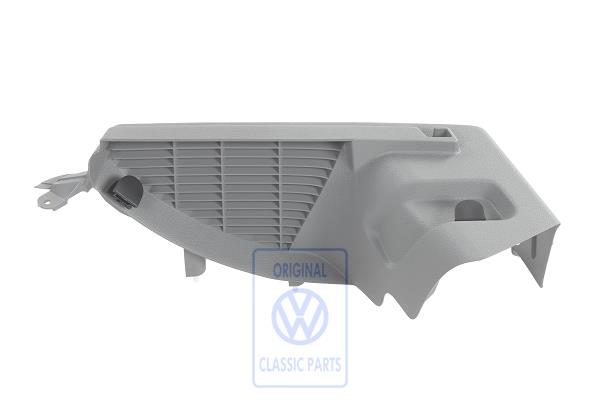

Auflage

Auflage

Auflage
Auflage
Product no.: 1K6 867 761 P 3U6
In stock
€40.00
All prices include VAT, plus Delivery charge

Product description:

Auflage

Model/catalogue category:

The original Volkswagen exploded schematics are now also available in our new Classic Parts online-shop. You will find them by selecting your model. You can do this by using the vehicle search to restrict the model / model generation / model year / specification. You can find Volkswagen models made after 1998 by using the VIN. If you open the product detail page of a spare part, the button “to the plate” will be displayed under “model” / catalog assignment”. By clicking that button, it will take you directly to the appropriate exploded schematic for your Volkswagen.

Model Model year starting from Model year to
Golf Mk5 2004 2009

Product details:

Product quality
Length 550 mm
Width 200 mm
Height 230 mm
Spare part number 1K6867761P 3U6
Weight 0,406 KG

Delivery information:

Shipping Category Germany: Package

Shipping Category International: Package

The delivery time within Germany is approx. 2-5 working days, for internatinal delivery approx. 4-10 working days.
