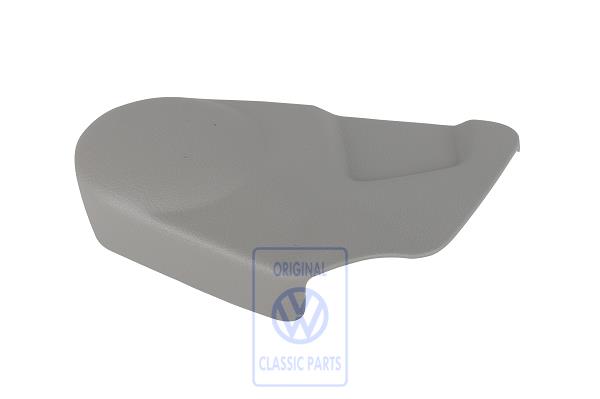

Product no.: 1J3 881 480 C U71
In stock
All prices include VAT, plus Delivery charge

Product description:


Model/catalogue category:

The original Volkswagen exploded schematics are now also available in our new Classic Parts online-shop. You will find them by selecting your model. You can do this by using the vehicle search to restrict the model / model generation / model year / specification. You can find Volkswagen models made after 1998 by using the VIN. If you open the product detail page of a spare part, the button “to the plate” will be displayed under “model” / catalog assignment”. By clicking that button, it will take you directly to the appropriate exploded schematic for your Volkswagen.

Model Model year starting from Model year to
Golf Mk4 1998 2006
New Beetle 1999 2005
New Beetle Cabriolet 2003 2005

Product details:

Product quality
Length 220 mm
Width 130 mm
Height 43 mm
Spare part number 1J3881480C U71
Weight 0,067 KG

Delivery information:

Shipping Category Germany: Package

Shipping Category International: Package

The delivery time within Germany is approx. 2-5 working days, for internatinal delivery approx. 4-10 working days.
